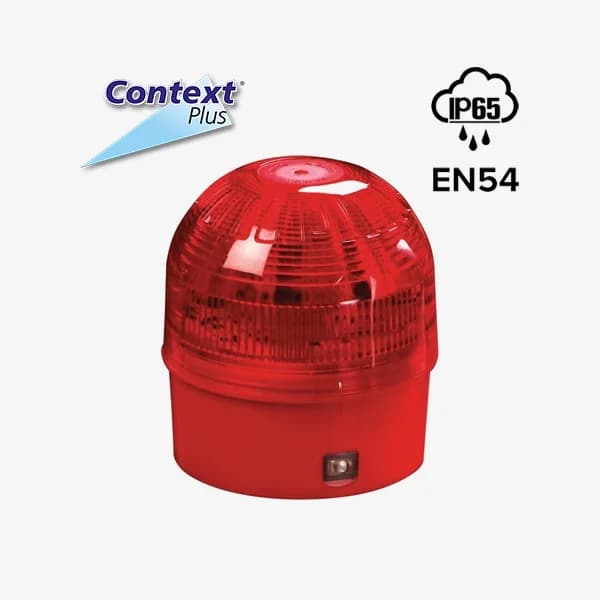

Addressable loop powered Open Area Beacon Red Lens with Isolator IP65

The Addressable Loop Powered Open Area Beacon (Red Lens) with Isolator is an intelligent visual alarm device designed for use in fire detection systems where audible alerts alone may not be sufficient. It is specifically engineered for environments requiring clear visual indication of alarm conditions, ensuring effective warning even in high-noise or hearing-critical areas. Powered directly from the addressable loop, the beacon eliminates the need for any external power supply, simplifying installation and system wiring. With its integrated isolating base and IP65-rated enclosure, it provides enhanced protection against dust and water ingress, making it suitable for both indoor and semi-outdoor applications. The unit supports individual and group addressing along with flash synchronisation for coordinated alarm signalling across multiple devices on the loop.

Product Code

55000-009

Product Type

Addressable Open Area Visual Indicator Beacon

Lens Colour

Red

Power Source

Loop Powered (No External Supply Required)

Operating Voltage

17–28V DC (Polarity Sensitive)

Current Consumption

1mA (in Alarm Condition)
