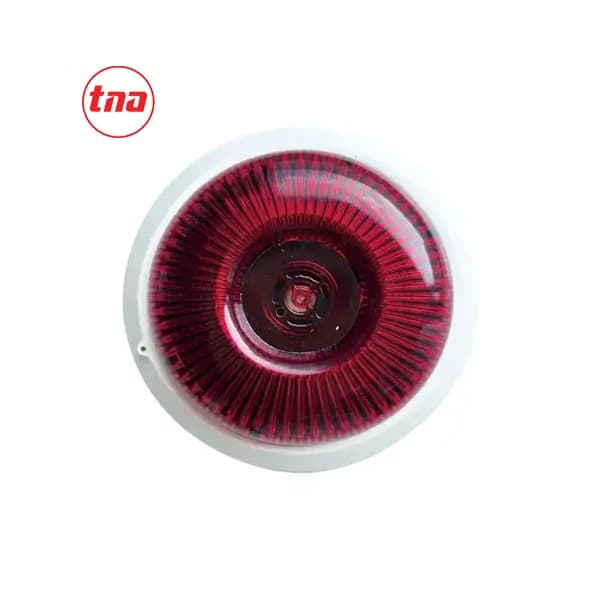

TXC7301 Conventional Sounder Strobe

The TXC7301 is a compact, high-performance conventional sounder strobe designed for effective visual and audible alerts in emergency situations. Operating on a standard 24VDC power supply, the TXC7301 combines high-brightness LED flash with an escalating acoustic alarm to attract rapid attention during fire or hazard events. Its lightweight, durable housing and easy surface mounting make it ideal for a wide variety of indoor environments such as hotels, malls, museums, libraries, banks, warehouses, and commercial buildings. Built with an integrated acoustic-optical chip, it delivers consistent performance with low power consumption and long-lasting reliability. This non-addressable device offers simple wiring, efficient operation, and is fully compatible with conventional fire alarm systems.

Power Supply Voltage

DC 24V (Operating Range: 15–28VDC)

Standby Current

< 10.0 mA

Sound Output

75–105 dB @ 3 meters (escalates in 3–5 seconds)

Flash Frequency

1.0 – 1.8 Hz

Sound Cycle Duration

2.5 – 4.5 seconds

Wiring Polarity

Polarity-sensitive

Operating Temperature
